Bosch IoT Insights

Archiving

In Archiving, you can enable and disable the archiving feature on project level, and you can choose between manual and automatic archiving. More details about these actions and about the archiving feature itself are described below.

In Input History on the other hand, you can archive and reinstate the relevant input history entries, either one by one or several entries at once. For details, refer to Input History.

About the archiving feature

The archiving of large input data entries (e.g. > 10 kB ) allows you to optimize the storage costs for big data which has already been processed and is not needed on a daily basis. Thus their content can be stored in a separate storage system and then only referenced in the database. This ensures support of large files and is counted as raw data.

After the archiving feature has been enabled on project level, the respective input data entries can be moved to a long term archive, which provides a cheaper storage price. The input data will remain archived for at least 90 days and in that period there will be no direct access to it. However, the meta information in the input history will remain queryable. Earlier retrieval of the archived data is possible via extended support and involves additional costs.

Our recommendation is to automatically archive input data entries which have not been used or accessed for 100 days or longer, as described below.

Prerequisites

You are assigned to the Admin role or higher and the project is a Premium plan.


Proceed as follows

  1. Navigate to Admin > Project and open the Archiving tab.
    → The Archiving tab is displayed with a description of the feature.
    → You can now configure the archiving settings for the current project, as described in the following sections.
    images/confluence/download/attachments/4974153653/archiving_toggles_and_save-version-1-modificationdate-1732903087000-api-v2.png

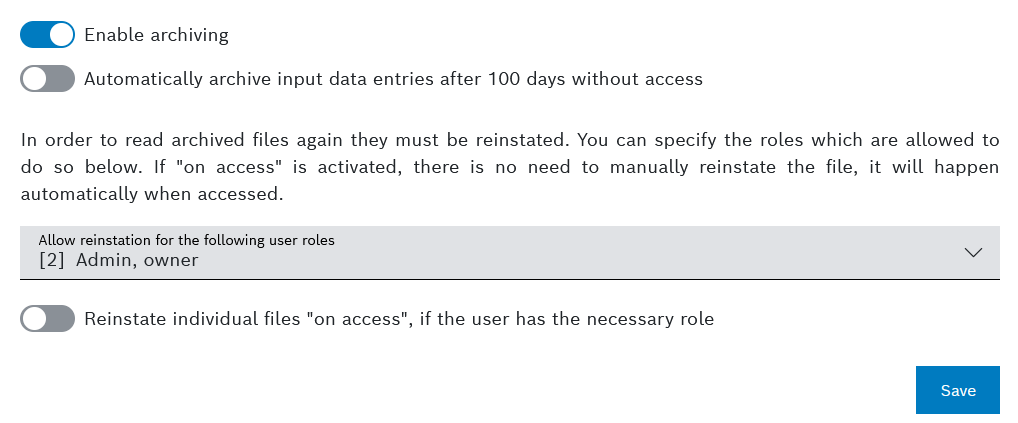

Enabling archiving

Proceed as follows

  1. Click the first toggle called Enable archiving.
    → With this toggle, manual archiving will be enabled.

  2. Optionally, click the second toggle called Automatically archive input data entries after 100 days without access.
    → Automatic archiving will be enabled.
    → If you choose to not enable this toggle, all the files can still be archived manually.

  3. Click the Save button.
    → The archiving configuration is applied.
    → If you chose the option Automatically archive input data entries after 100 days without access, you may need to wait up to 24 hours until the input history entries are archived for the first time, since the corresponding job runs every 24 hours.

Disabling archiving

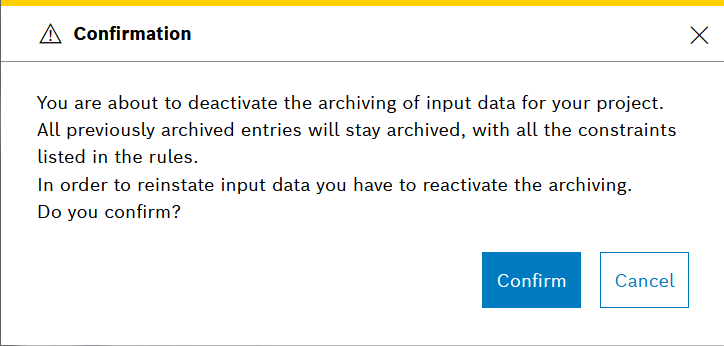

At any time, you can change the archiving configuration and even disable the archiving completely. In such a case, you will be asked for a confirmation and will be informed of the consequences.

Any changes to the archiving configuration will not affect the status of the already archived input history entries.

images/confluence/download/attachments/4974153653/deactivate_archiving_warning-version-1-modificationdate-1732903087000-api-v2.png

Handling the archiving of input data

For details on how to use this functionality, refer to the corresponding section in Input History.

Checking the archiving statistics

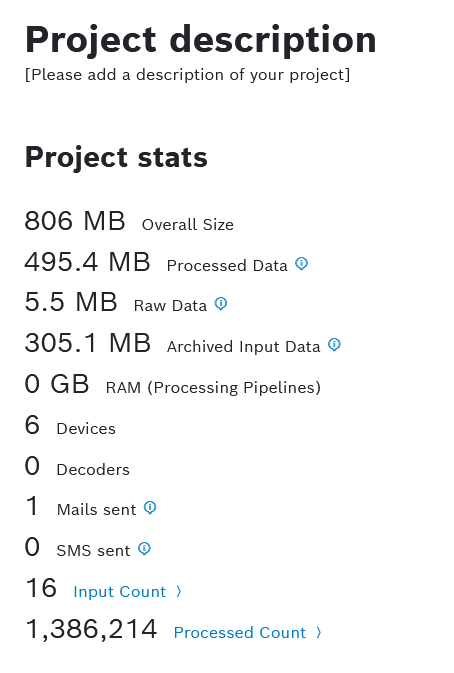

To check the volume of archived data, go to Overview on the left navigation and check the Archived Input Data reported by the Project stats widget, which is pre-configured on the main dashboard.

If such a dashboard is not configured for your project, you can configure one as described in Project Stats widget.

images/confluence/download/attachments/4974153653/project_stats_widget-version-1-modificationdate-1732903087000-api-v2.png

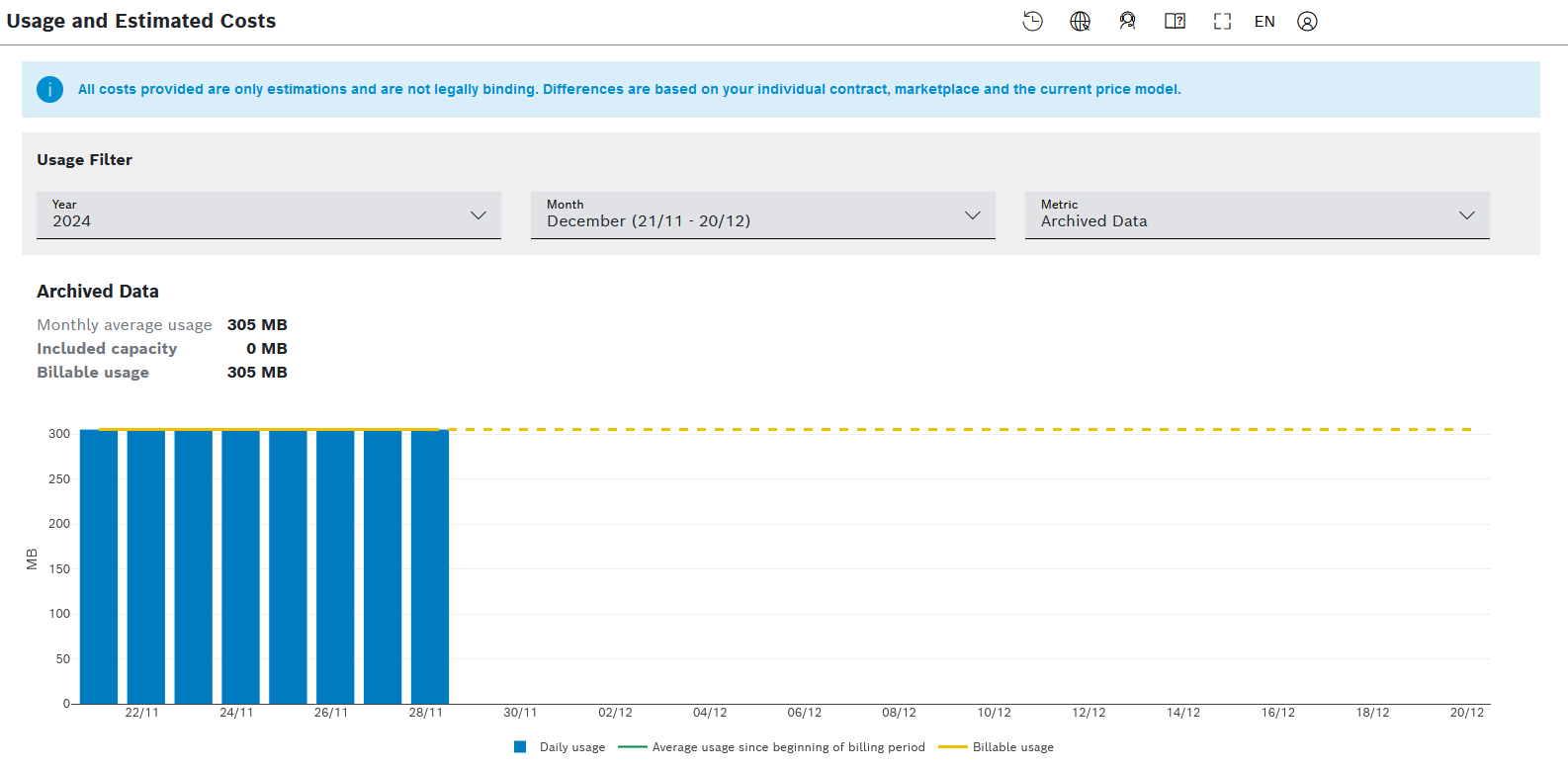

To check the costs related to the already archived data, navigate to Admin > Usage and costs and on the Metric field's drop-down list choose Archived Data, refer to Usage and Estimated Costs.

images/confluence/download/attachments/4974153653/usage_and_estimated_costs_drop-down_list_archived_data-version-2-modificationdate-1734081699000-api-v2.png
