Custom widgets have access to specific information, called widget context, which is provided by Bosch IoT Insights.

This context contains key data about the current widget and its environment, allowing you to customize and enhance your widget's behavior. Such data is also required when making API calls, as explained below.

By following this guide, you can fully utilize the widget context and data source capabilities to create dynamic and interactive custom widgets.

Context details

The widget context includes the following properties:

Property	Type	Description
`project`	string	Name of your project
`dashboardName`	string	Name of the dashboard you are working on
`widgetId`	string	ID of your custom widget
`filterParams`	Record<string, any>	Currently available filter parameters (empty if no filter widget is active)
`insights`	`InsightsUserContext`	User context information, including user data, language, timezone, etc.
`projectRoles`	string[]	Current user roles (e.g. admin, manager, power-user)
`customConfigValues`	Record<string, any>	Admin-configurable properties specific to the widget
`hasDataSourceConfig`	boolean	Indicates if the data source is enabled
`widgetFilesUrl`	string	Path to your widget files Use this to access assets (e.g., `<img [src]="_context?.widgetFilesUrl + '/assets/hello.png'">`).

Accessing the widget context

You can access the widget context by using:

the @Input decorator in Angular,
the getAttribute in vanilla JavaScript,
other, depending on your framework.

Whenever there is an update in the context, the widget will automatically receive the latest version.

Consider the following examples:

Angular example

@Input() set context (value: string) {
  this._context = value ? JSON.parse(value) : undefined;
}

Javascript example

get context() {
  return this.getAttribute('context');
}

Accessing the data source

If your custom widget is configured to involve a data source (see Configuring the manifest file), you can listen for changes in it. An update in the data source will trigger an event.

Consider the following examples:

Angular example

@HostListener('data', ['$event'])
  onData (ev: CustomEvent) {
    console.log('Received data', ev.detail);
    this.data = ev.detail;
  }

Javascript example

this.addEventListener('data', (d) => {
  console.log('data', d);
});

Using the widget context values in REST requests against the Insights API

You can use the widget context values to interact with the Insights API.

For detailed information on the available endpoints, refer to API references and the corresponding Swagger documentation.

Example: Making a Data Recorder Call

This example demonstrates how you can use Angular to:

assemble a URL based on the widget context, and
send a payload

runInsightsCall() {
  if (this._context) {
    const url = `/data-recorder-service/v2/${this._context.project}`;

    this.loading = true;
    this.http.post(url, { context: this._context, data: this.data }).subscribe(value => {
      this.loading = false;
      this.result = value;
    });
  }
}

In this case, the payload includes both the context and data objects, but you can modify it to meet your requirements.

Using the widget context values to execute REST request definitions

If you want your widget to execute REST request definitions, follow these steps:

In the widget's manifest file (see Configuring the manifest file > configProperties > RestRequestDefinition), add a REST request definition.

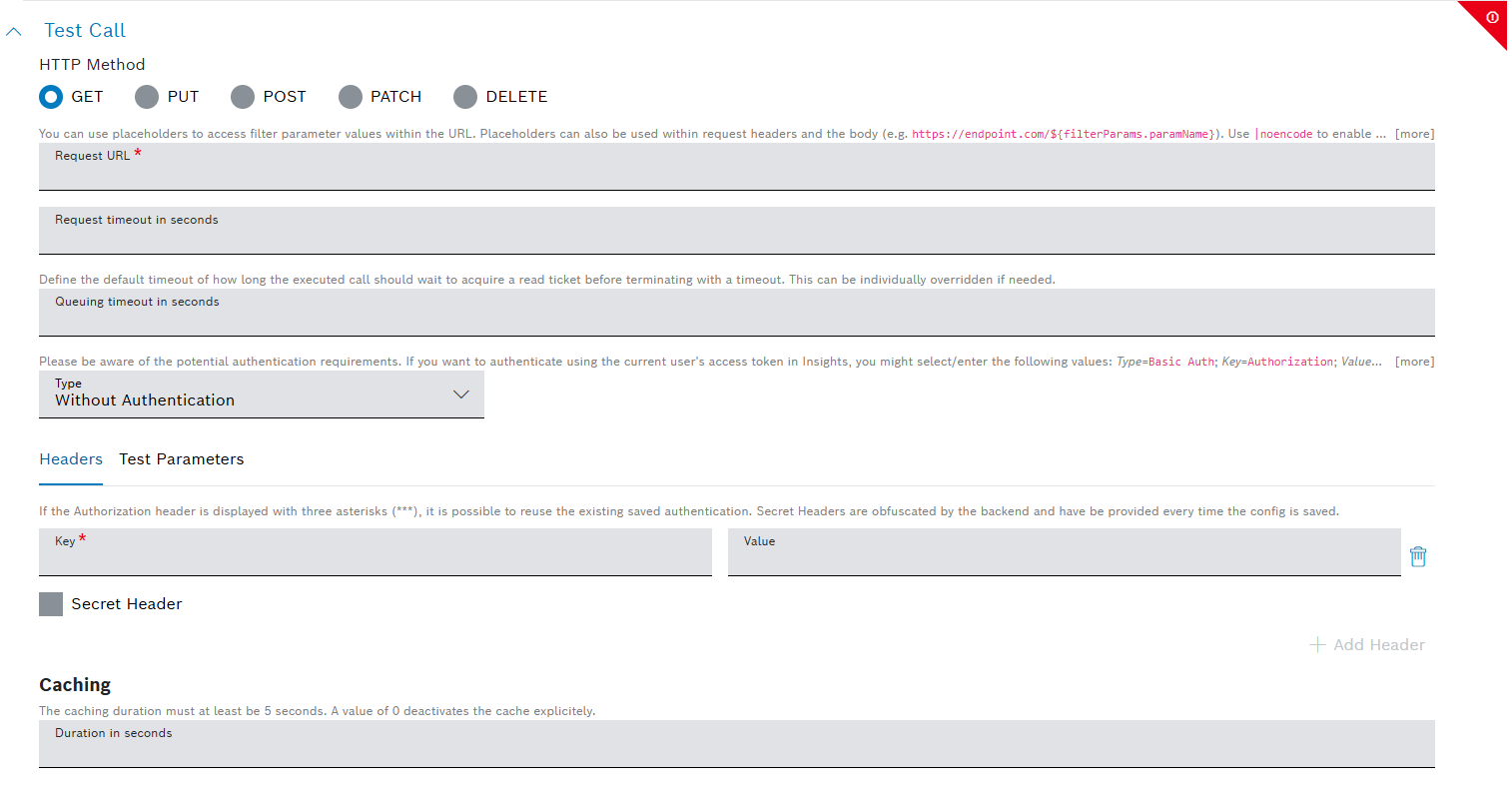

On the Insights UI, use the widget's newly added configuration pane (as on the screenshot below) and configure the respective REST call, which can be either internal or external.
In our example, we will configure a call to access data from an external system.
Execute the REST call, as shown in the example below.

Example: Executing a REST request definition

The code block below illustrates how you can execute an already configured REST request definition.

For the sake of the example, the definition key is call and it is evaluated against the definition's ID.

Angular example

runCall () {
  if (this._context?.customConfigValues?.call) {
    const url = `/project-management-service/v1/${this._context.project}/rest-request-definition/${this._context.customConfigValues.call}/execute`;
    this.loading = true;
    this.http.post(url, { context: this._context, data: this.data }).subscribe(value => {
      this.loading = false;
      this.result = value;
    });

  }
}

Navigating to other pages using the Angular Router integration

You can use our integration with the Angular Router in order to redirect users to different parts of the application.

Example: Navigating using Angular Router

Angular example

this.elRef.nativeElement.insightsNavigate(`/project/${this?._context?.project}/home`);

Here, elRef is a reference to the widget element:

constructor (private elRef: ElementRef) {}

In case of questions, please contact our support team.
